起源の場所:
中国
ブランド名:
RanCheng
証明:
CE, ISO 9001:2000
モデル番号:
RCF350C

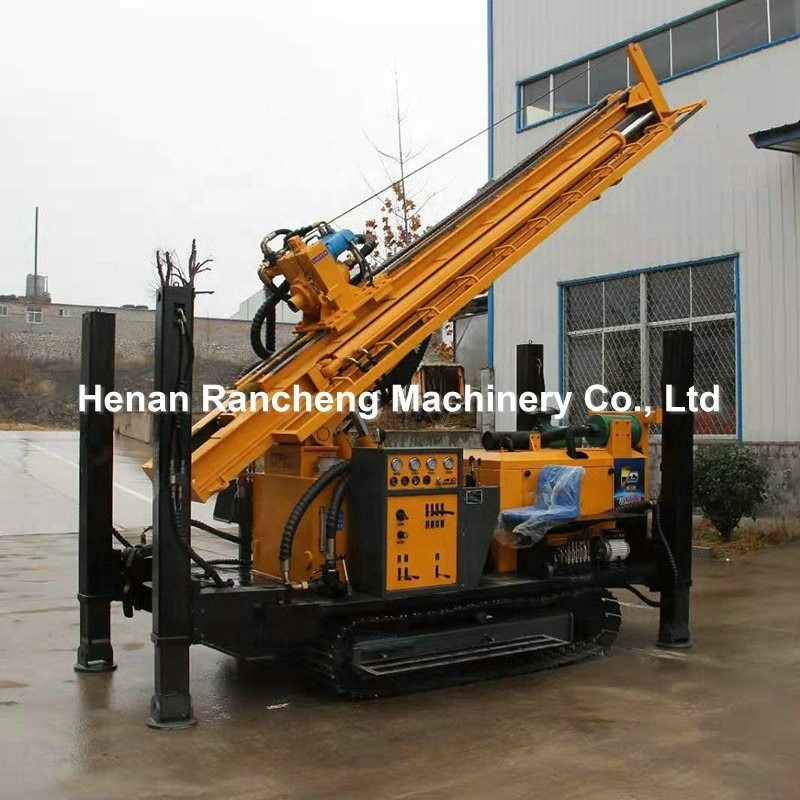

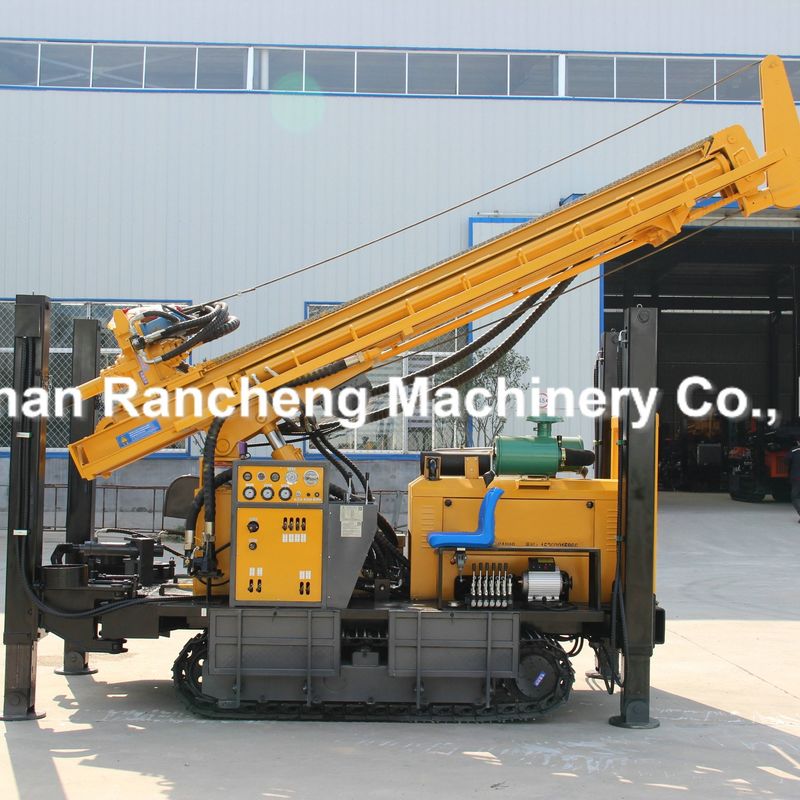

RCF350C Hydraulic Tracked Water Well Drilling Rig Mud Pump Air Compressor
The RCF350C is a high-efficiency, multi-functional DTH pneumatic-hydraulic water well drilling rig. It boasts powerful performance, flexible mobility, and adaptability to various geological formations and water well drilling projects, offering outstanding practicality.
Core Parameters and Configuration
1. Power Configuration: Equipped with a 92 kW diesel engine, dual-motor drive, and a top-mounted rotating power head, it can be used in conjunction with mud pumps and air compressors.
2. Drilling Capacity: Maximum drilling depth of 350 meters, borehole diameter of 100-350 mm, easily handling various geological formations such as hard rock, clay, soil, and sand.

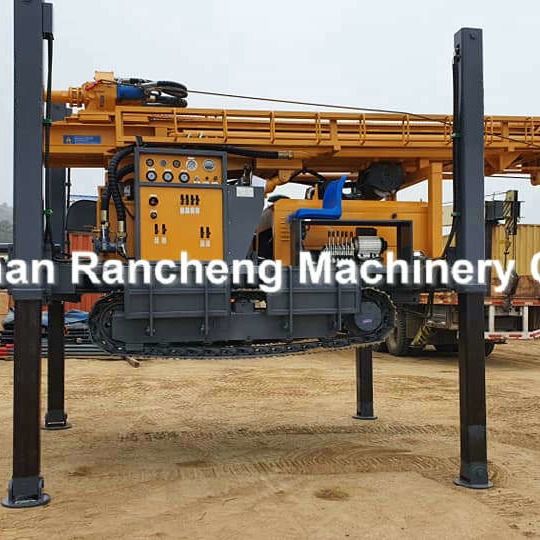

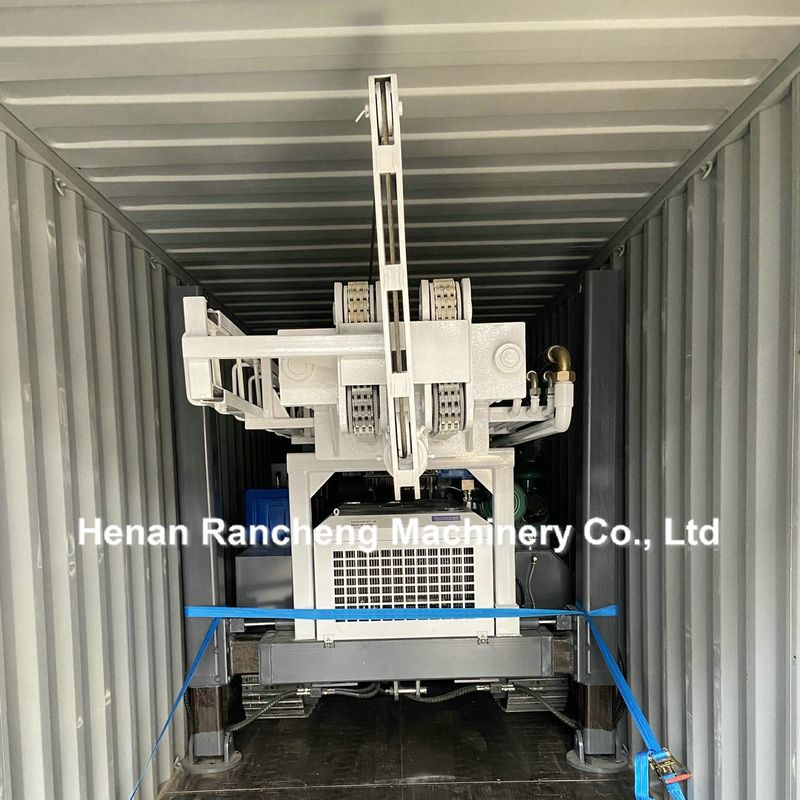

3. Mobility and Transportation: Hydraulic rubber track chassis for convenient site relocation; equipped with four 1.7-meter-high hydraulic outriggers for easier truck transport.
Applicable Scenarios
Widely used for drilling various types of water wells, including domestic drinking water wells, agricultural irrigation wells, industrial water wells, geothermal wells, and hydrological monitoring wells, adaptable to diverse civil and industrial drilling needs.
Technical parameters
| Bore diameter(hammer) | 140-350mm |
| Bore depth | 350m |
| Air consumption | 17-35m³/min |
| Air pressure | 1.7-3.5Mpa |
| Pipe diameter | 89mm/102mm |
| Pipe length | 1m/2m/3m/6m |
| Lifting force | 22T |
| Lifting speed | 3m/min |
| feeding speed | 0.5-5m/min |
| Fast lifting speed | 30m/min |
| Fast feeding speed | 50m/min |
| Max torque of rotary | 6200-9000Nm |
| Rotary speed | 55-115r/min |
| Hoist lifting capacity | 2T |
| Mud Pump flow | 450L/min (option) |
| High hydraulic leg | 1.5m |
| Feeding efficiency | 10-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension(L*W*H) | 6000×2000×2550mm |
| weight | 8600Kg |
| Diesel engine | 91KW Yuchai engine 4 cylinders |
| Drilling way | Air compressor drilling or mud pump drilling |
