起源の場所:
中国
ブランド名:
RanCheng
証明:
CE, ISO 9001:2000
モデル番号:
RCF300T トラック搭載型井戸掘削機

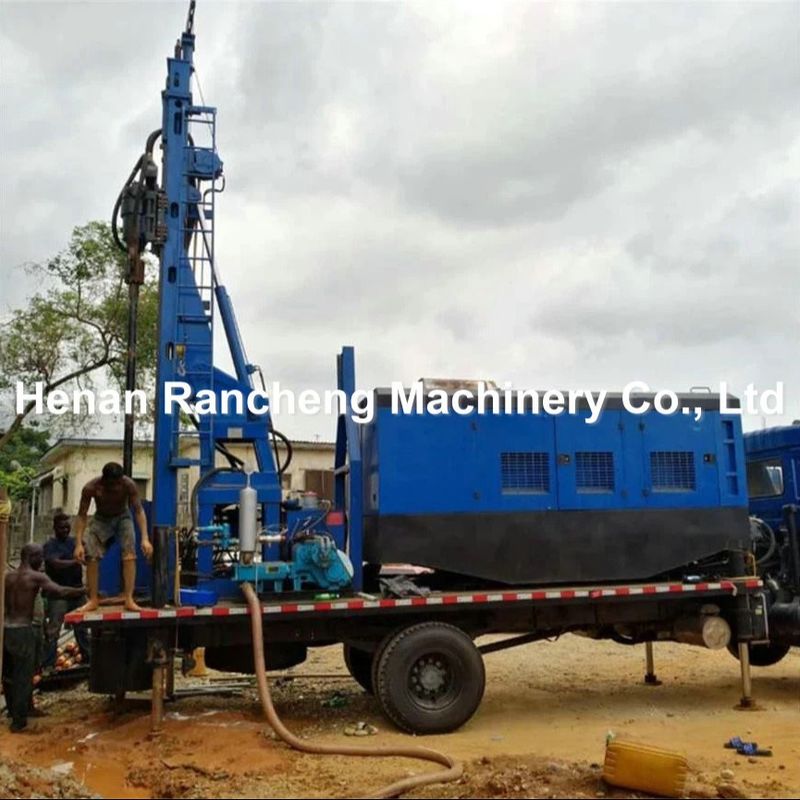

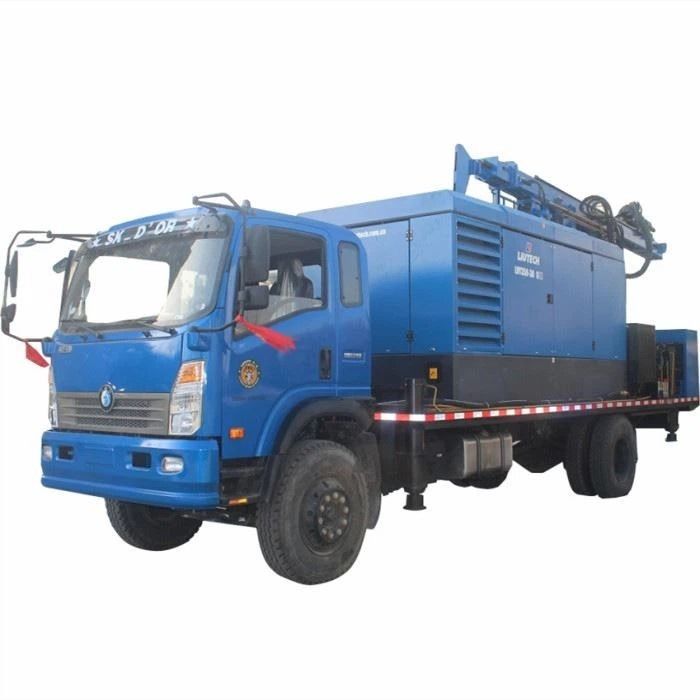

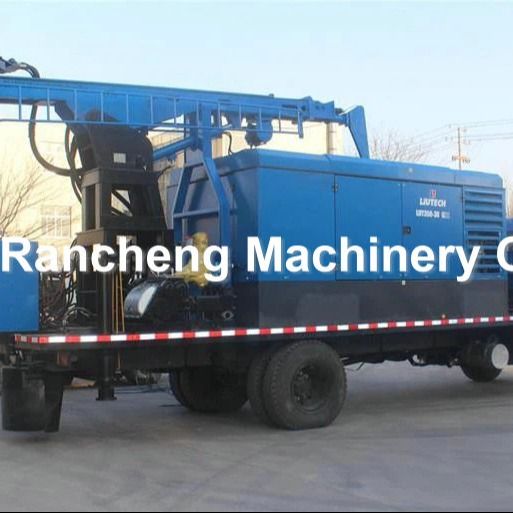

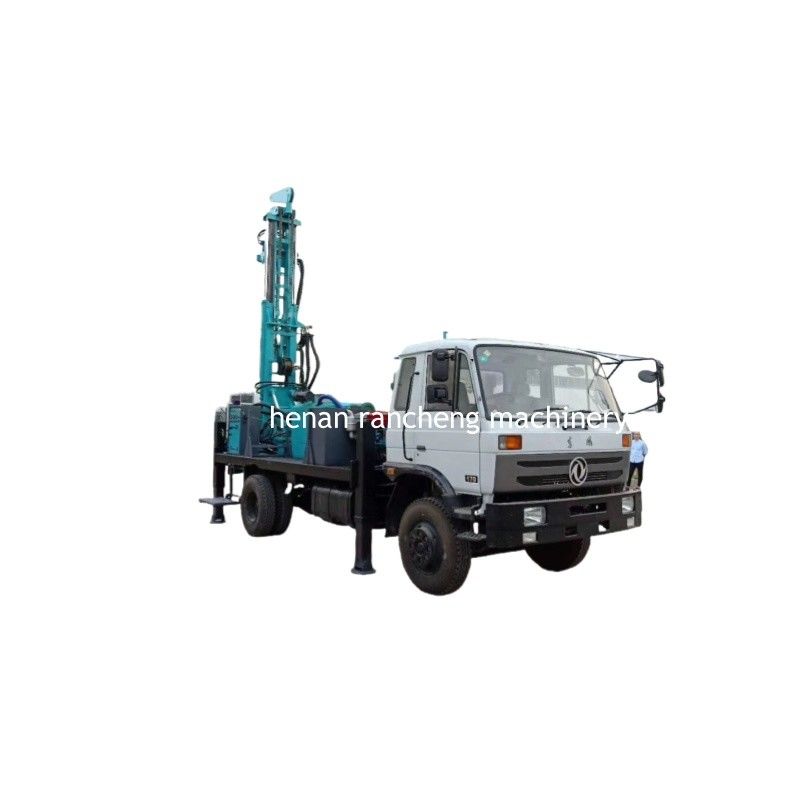

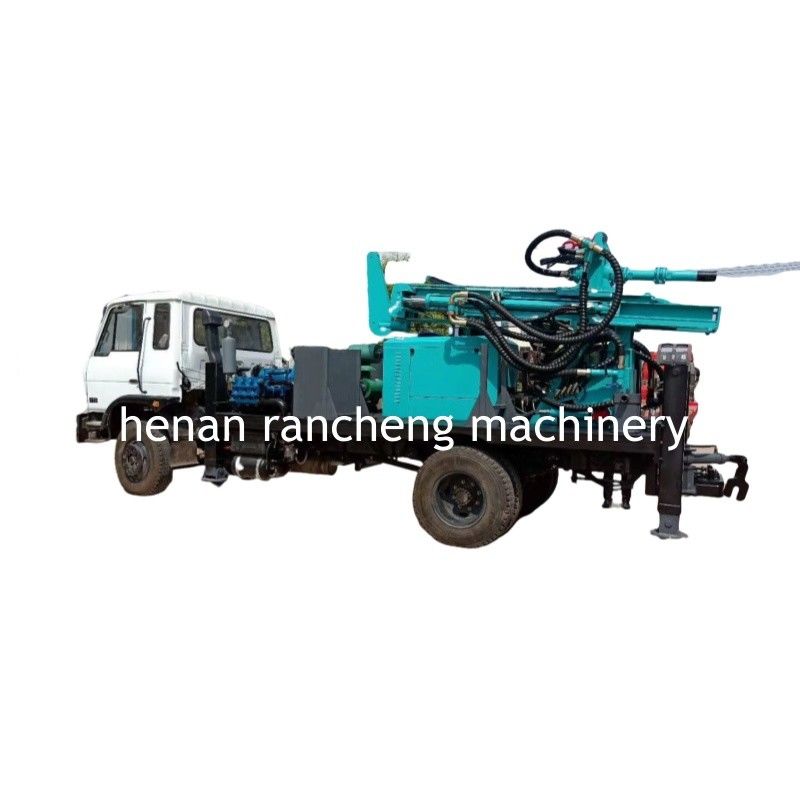

The RCF300T drilling rig is mounted on a HOWO 6×4 truck chassis, featuring an integrated design that combines the drilling rig, mud pump, and air compressor onto a single chassis. This configuration significantly enhances overall equipment performance. The rig includes a power take-off (PTO) system, allowing operation via the truck engine or an optional separate engine based on customer requirements.
Equipped with a high-pressure screw air compressor and mud pump, this drilling rig adapts seamlessly to various geological environments and meets diverse drilling operation needs. The drilling tower is constructed from Q345B high-temperature, low-temperature resistant, flame-retardant material and features integrated welding for robust and reliable structure. Available in multiple models with drilling depths ranging from 200 to 800 meters to accommodate diverse customer requirements.
| Parameter | Specification |
|---|---|
| Drilling Type | Mud pump drilling and air DTH drilling |
| Geology Drilled | All kinds |
| Drill System and Operation | Hydraulic |
| Drilling Diameter (mm) | 115-350 |
| Drilling Depth (m) | 300 |
| Work Pressure (Mpa) | 1.05-3.5 |
| Consumption (m³/min) | 16-40 |
| Drill Pipe Length (m) | 3 |
| Drill Pipe Diameter (mm) | 89 |
| Axle Pressure (N) | 57,000 |
| Lifting Power (T) | 12T |
| Rotary Torque (Nm) | 5,600 |
| Rotary Speed | 0-100 |
| Truck Chassis | DONGFENG |
| Diesel Engine Model | Cu-mmins |
| Discharge Standard | Euro III |
| Horsepower | 180HP |
| Rated Speed | 2,500r/min |
| Fuel Type | Diesel |
| Tire Size | 90.00-20R |
| Drive Form | 4×2 |
| Dimension (mm) | 8900×2100×3300 |
| Total Weight (T) | 12 |
Henan Rancheng Machinery Co., LTD is a professional supplier of drilling rigs in China, dedicated to designing and manufacturing water well drilling rigs, rotary drilling rigs, anchor drilling rigs, core drilling rigs, DTH drilling rigs, solar pile drivers, mud pumps, air compressors, and drilling tools.
With advanced technology, modern equipment, first-class team, and rich experience, our products have passed ISO9001 and CE certifications. They are exported to approximately 200 countries and areas worldwide, receiving excellent feedback from our clients.
We pursue the principle of "Customer First, Integrity First" and sincerely look forward to cooperating with you!
