起源の場所:
中国
ブランド名:
RanCheng
証明:
CE, ISO 9001:2000
モデル番号:
RCF180S
High-performance Yuchai 180m Bore Depth RCF180S Mini Water Well Drilling Machine
Machine Description
The RCF180S is a compact yet powerful crawler-mounted water well drill rig designed for both efficiency and versatility. Despite its small size, its performance is impressive—it can drill to a maximum depth of 180 meters and boasts a lifting capacity of 15 tons.
It is powered by a 77.3-kW Yuchai engine, capable of operating with either a mud pump or an air compressor. Its rubber tracks make it easy to maneuver, even on uneven mountain terrain. Furthermore, this drill rig is equipped with advanced remote control technology, allowing for remote control of everything from drilling operations to movement.
Technical Parameters
| Bore diameter(hammer) | 90-300mm |
| Bore depth | 180m |
| Air consumption | 17-31m³/min |
| Air pressure | 1.7-2.5Mpa |
| Once-time advance length | 2.4m |
| Pipe diameter | 76mm/89mm |
| Pipe length | 2m |
| Push force | 4T |
| Lifting force | 15T |
| Max torque of rotary | 4000-4600Nm |
| Rotary speed | 45-65r/min |
| Mud Pump flow | 200L/min (option) |
| Feeding efficiency | 10-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension(L*W*H) | 2300×1200×1900mm |
| weight | 2700kg |
| Diesel engine | 77.3KW Yuchai engine |
Feature:
Compact and Easy to Handle
With a weight of only 2700 kg and overall dimensions of 2300×1200×2900mm, this rig is lightweight and space-saving. As an operator, you’ll appreciate how effortless it is to transport and maneuver, even in restricted work areas.
Powerful Dual-Motor Top Drive
Equipped with a dual-motor rotary head, the rig works seamlessly with both mud pumps and air compressors. The enhanced torque and higher rotation speed ensure smooth penetration and improved drilling efficiency.
Strong Engine Performance for Demanding Jobs
Powered by a 77.3 kW Yuchai engine, the machine is capable of drilling up to 180 meters deep with boreholes ranging from 90–300mm. Whether for water well projects or other drilling applications, it delivers reliable strength in the field.
Rubber Crawler Mobility
Mounted on rubber tracks, the rig moves easily across soft or uneven ground. Relocation between job sites is quick and hassle-free, making it a highly versatile solution.
Stable and Convenient Operation
The hydraulic support legs not only provide excellent stability during drilling but also make loading and unloading onto trucks simple and efficient. This saves valuable time and ensures safety on site.

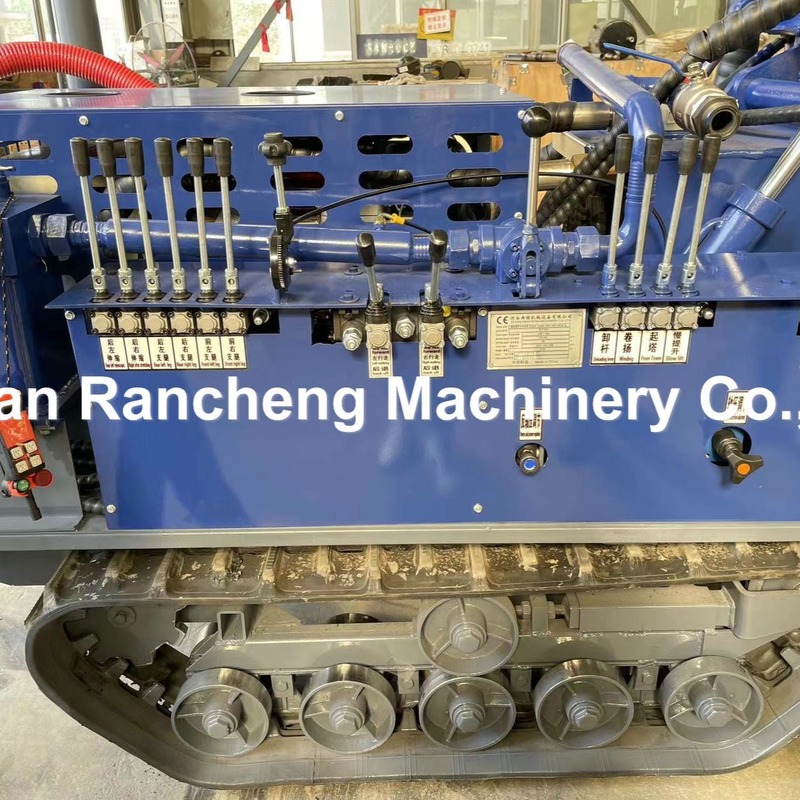

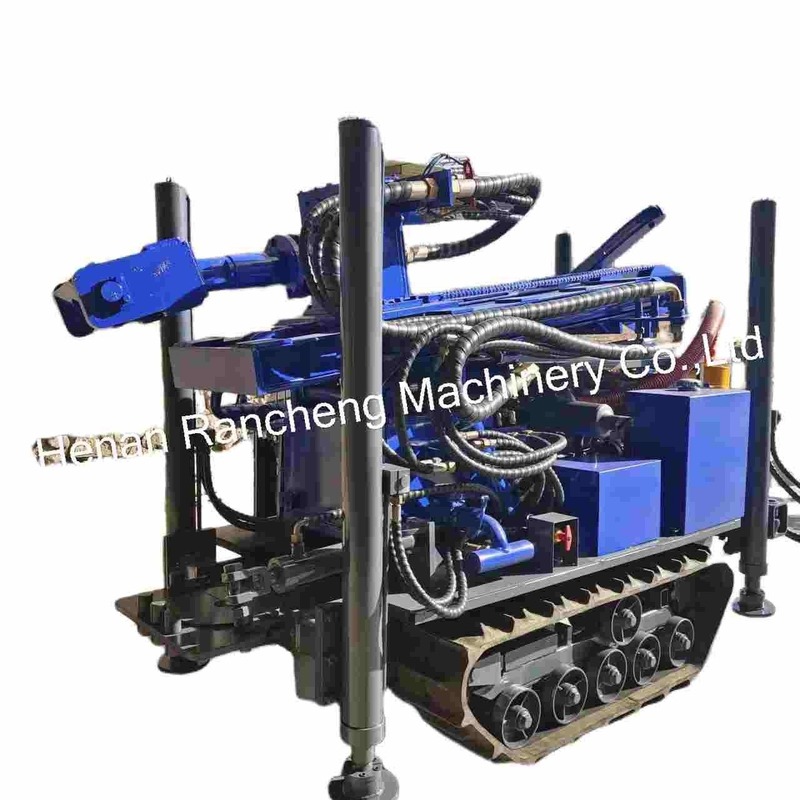

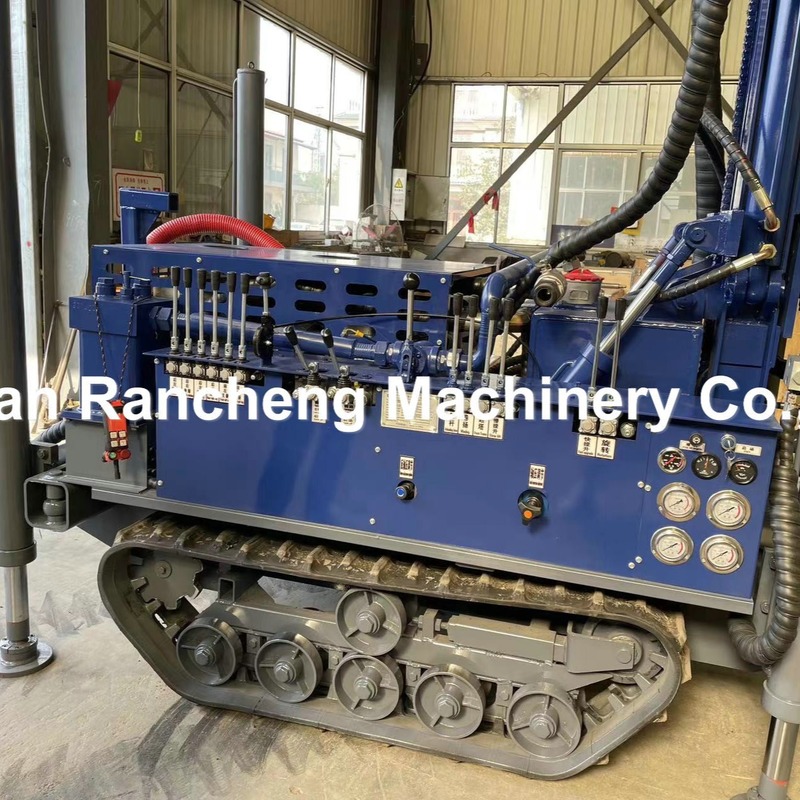

Image Display
