起源の場所:
中国
ブランド名:
RanCheng
証明:
CE, ISO 9001:2000
モデル番号:
RCS200C ポータブル水井掘削機
200m portable crawler mounted small water well rock drilling rig multi-function water well drilling rig borehole machine
Product Description
With a drilling depth of up to 200 meters and a diameter range of 100 to 450 mm, this drill can easily handle a wide range of projects. Powered by a 22-horsepower heavy-duty diesel engine, the RCS200C delivers reliable performance in a wide range of geological formations, allowing you to complete your work efficiently.
In short, the RCS200C portable crawler water well drill is designed for users who value efficiency, reliability, and ease of use. Whether you're drilling for agriculture or providing clean water for your home, this drill delivers exceptional results. Explore the unique features of the RCS200C and join the ranks of satisfied users who have made it their favorite. Get ready to take your water well drilling projects to the next level!
Product Specifications
| Model | RCS200C |
| Geology drilled | All kinds |
| Drill depth | 200 m |
| Drilling Diameter | 90 -300mm |
| Drill system and operation | Hydraulic |
| For rock | 6-20F |
| Air consumption | 17-35m³/min |
| Air pressure | 1.7-3.0Mpa |
| Rotary head | |
| Rotation Torque | 4000-5000N.m |
| Rotation speed | 80-200rpm |
| Lifting capacity | 14000KGS |
| Pull down capacity | 4000KGS |
| DRILL PIPE | |
| Drill pipe length | 2 meter |
| Drill pipe diameter | 60/76/89 mm |
| MUD PUMP | |
| Flow capacity | 160 liter/min |
| working pressure | 1.3MPA |
| DIMENSIONS | |
| Transport size | 2300*1200*1700mm |
| Weight | 2000KGS |
| Diesel engine | |
| Power | 45KW Weifang Hengtong |
Applications
This water well drilling machine mainly apply to geothermal drilling, farm irrigation,house yard, gardens ,water well drilling and boring drilling etc,it can drill 70-450mm diameter , Max 200m depth,It also can be used in small building piling, like farmhouse or factory, the drilling diameter can reach 450mm ,it can apply to different stratum, such as sand,soil,clay,soft rock and so on.

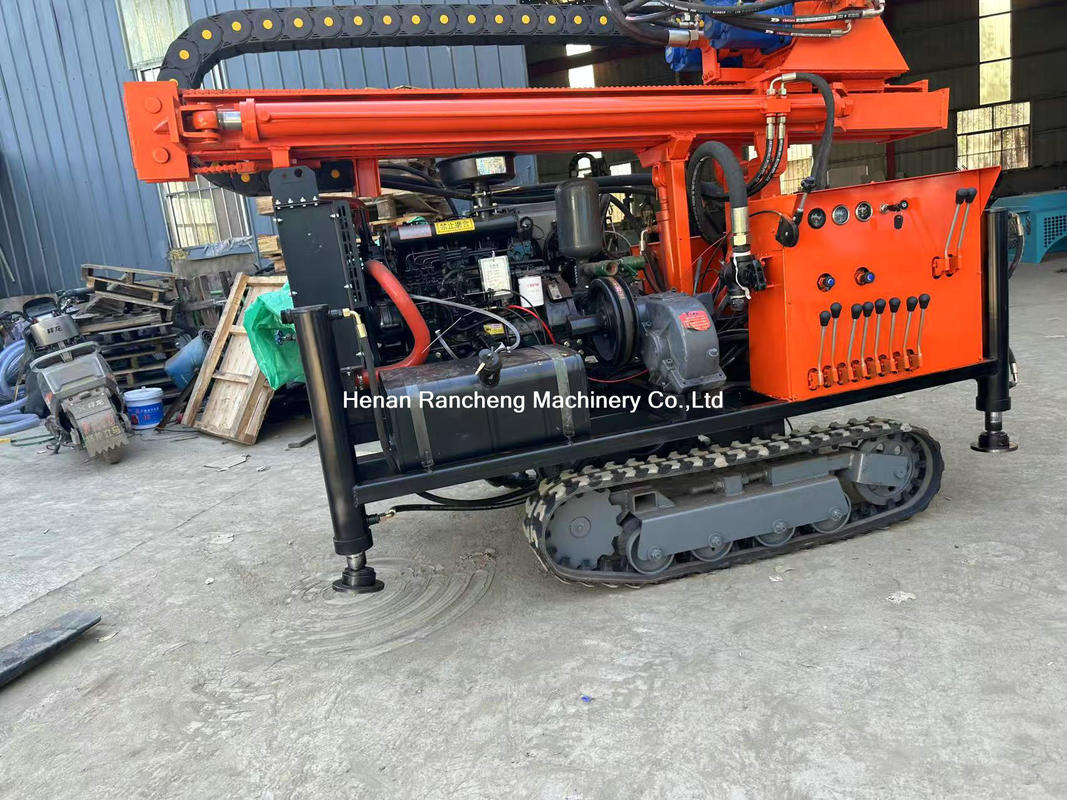

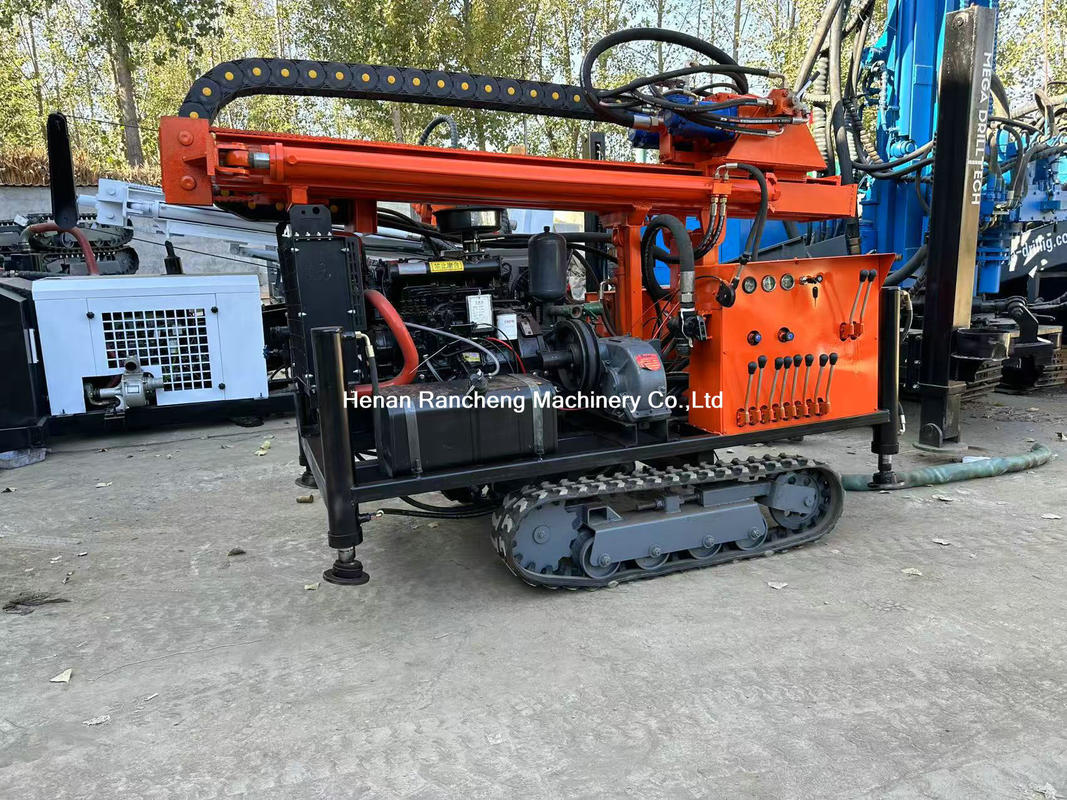

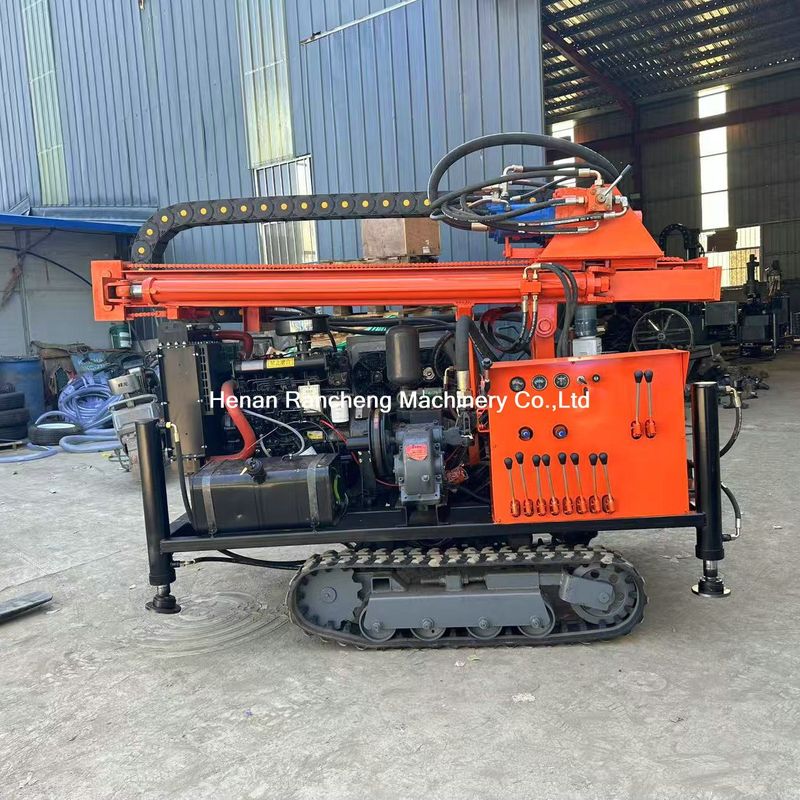

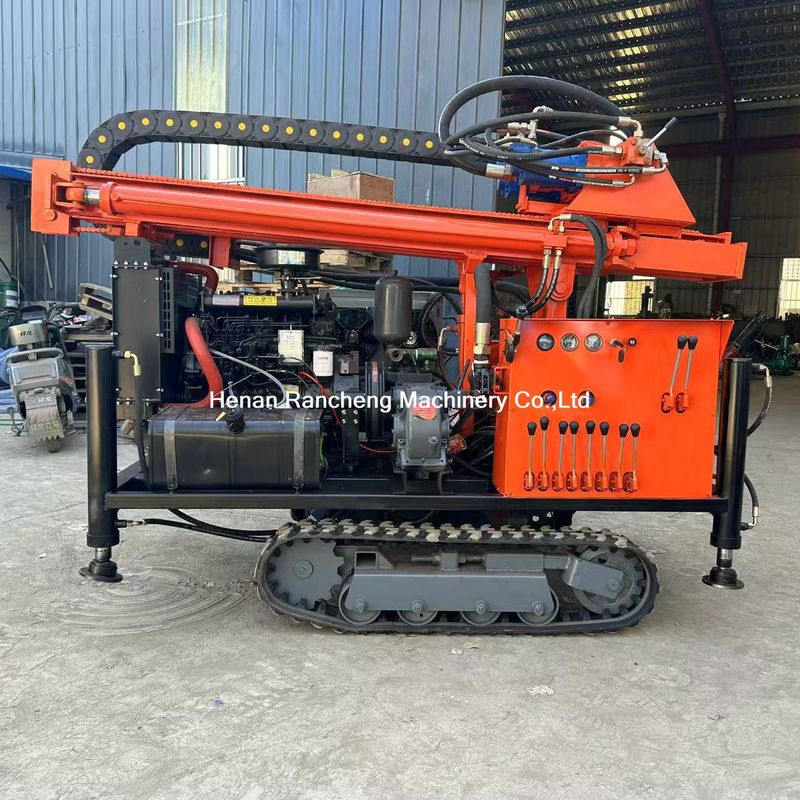

Product Image
