260m Depth Fully Automatic Wheel Hydraulic Water Well Drilling Machines for Drilling Equipment Water Well Equipment
Machine Introduction
The RCF260W wheeled water well drill rig is lightweight, efficient, and versatile. It is primarily suitable for industrial and civil drilling, as well as geothermal drilling. Its compact design, fast drive, flexible maneuverability, and wide range of applications make it an ideal choice for water supply in mountainous areas and rock formations.
Our rigs are manufactured from high-quality materials and feature a modern, compact design, which improves efficiency, reduces failure rates, and offers excellent value for money. Thanks to positive customer feedback, our water well drill rigs have gained widespread market recognition.
This versatile water well drill rig can be used with an air compressor, a mud pump, or even standalone for dry hydraulic drilling. It is suitable not only for water well drilling, but also for all porous formation conditions.
Technical Parameters
| Bore diameter(hammer) | 90-350mm |
| Bore depth | 260m |
| Air consumption | 17-35m³/min |
| Air pressure | 1.7-3.0Mpa |
| Pipe diameter | 76mm/89mm |
| Pipe length | 1m,2m,3m |
| Push force | 4T |
| Lifting force | 15T |
| Lifting speed | 2.5m/min |
| feeding speed | 0.5-5m/min |
| Fast lifting speed | 24m/min |
| Fast feeding speed | 35m/min |
| Max torque of rotary | 4000-5300Nm |
| Rotary speed | 45-70r/min |
| Hoisting force of winch | 1.5T |
| Mud Pump flow | 20L/min (option) |
| High hydraulic leg | 1.5m |
| Feeding efficiency | 10-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension(L*W*H) | 4×1.85×2.3M |
| Weight | 6500Kg |
| Diesel engine | 70KW engine |
Machine Application
This Water drilling machine is widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.

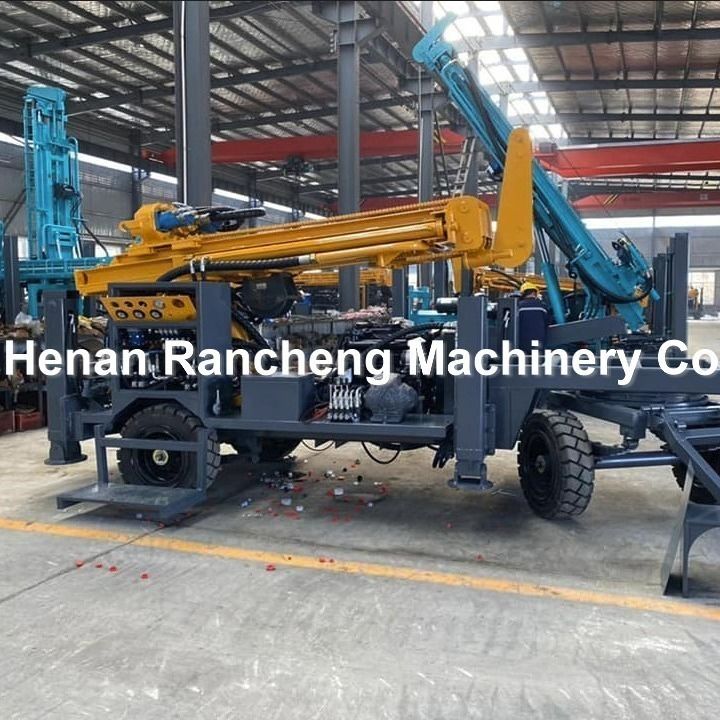

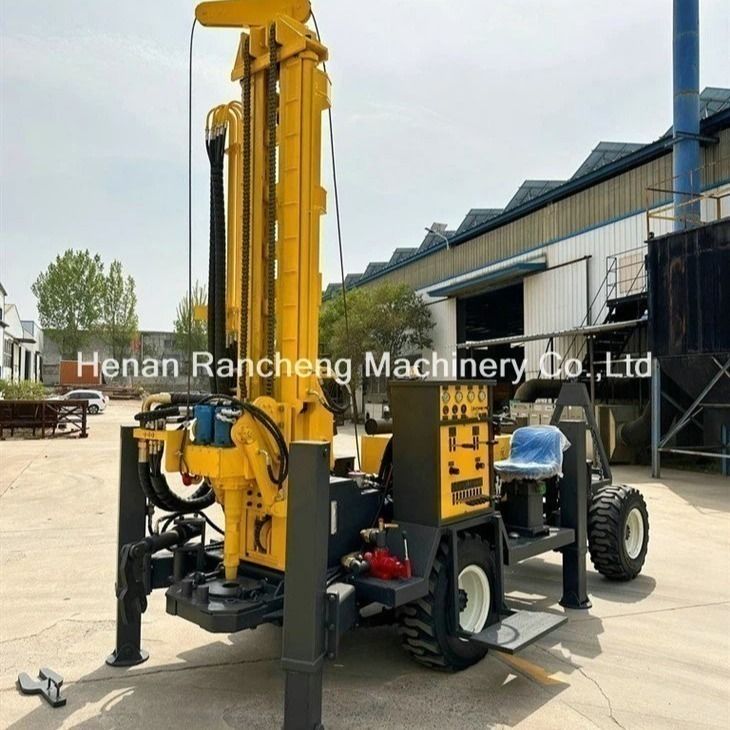

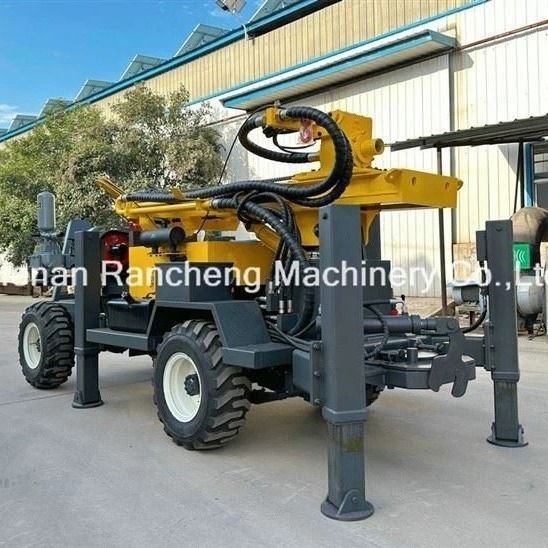

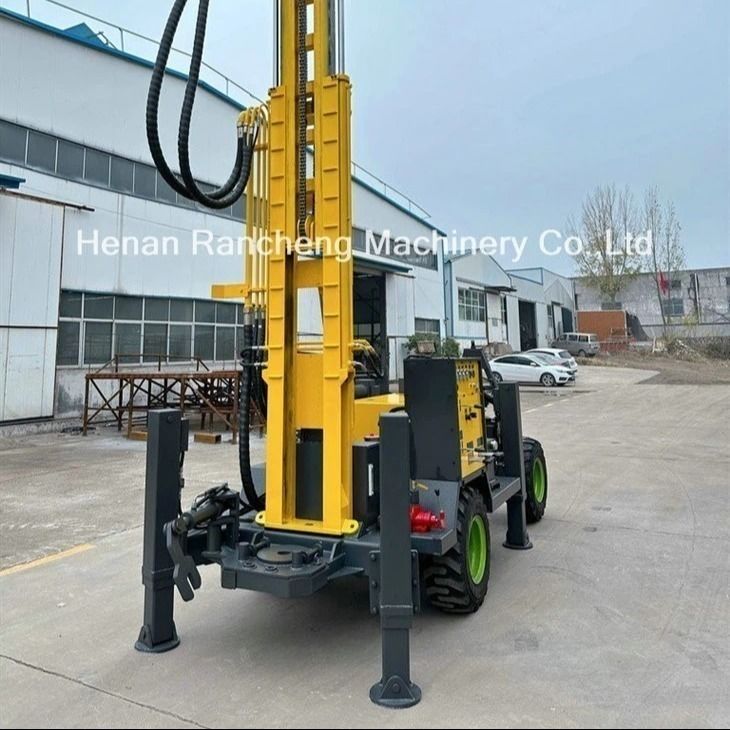

Machine Pictures
