Place of Origin:
China
ブランド名:
RanCheng
証明:
CE, ISO 9001:2000
Model Number:
BW160
| Attribute | Value |
|---|---|
| Model | BW160 |
| Flow rate | 160L/min |
| Pressure | 1.3 MPa |
| Transmission power | 5.5KW |
| Frequency of stroke | 147 times/min |

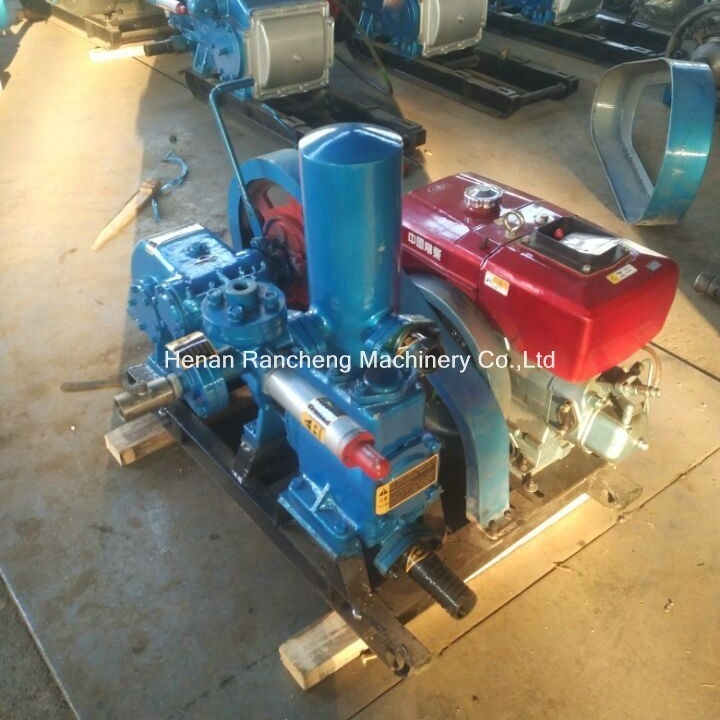

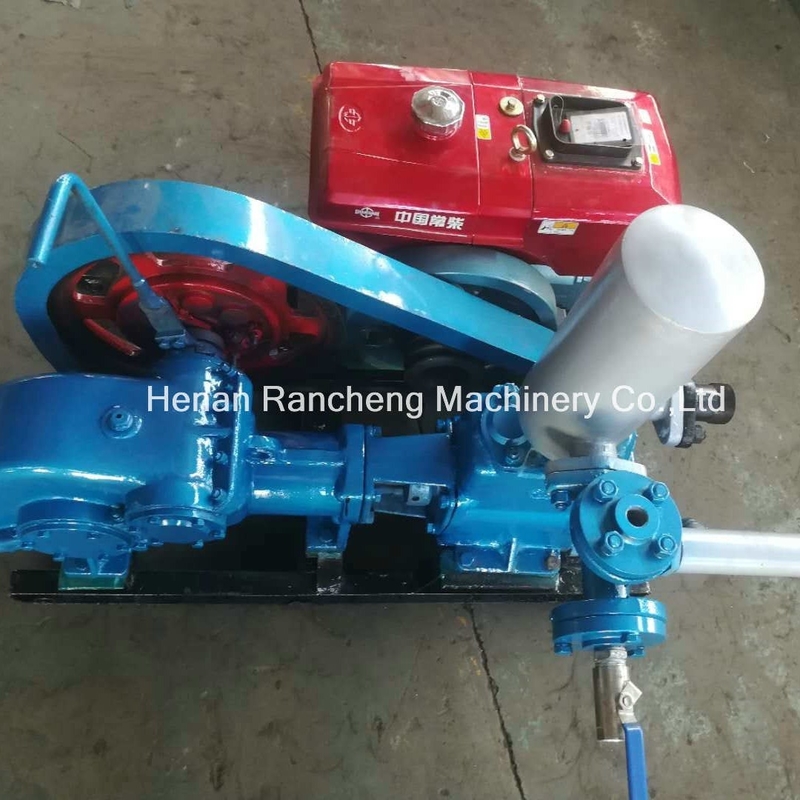

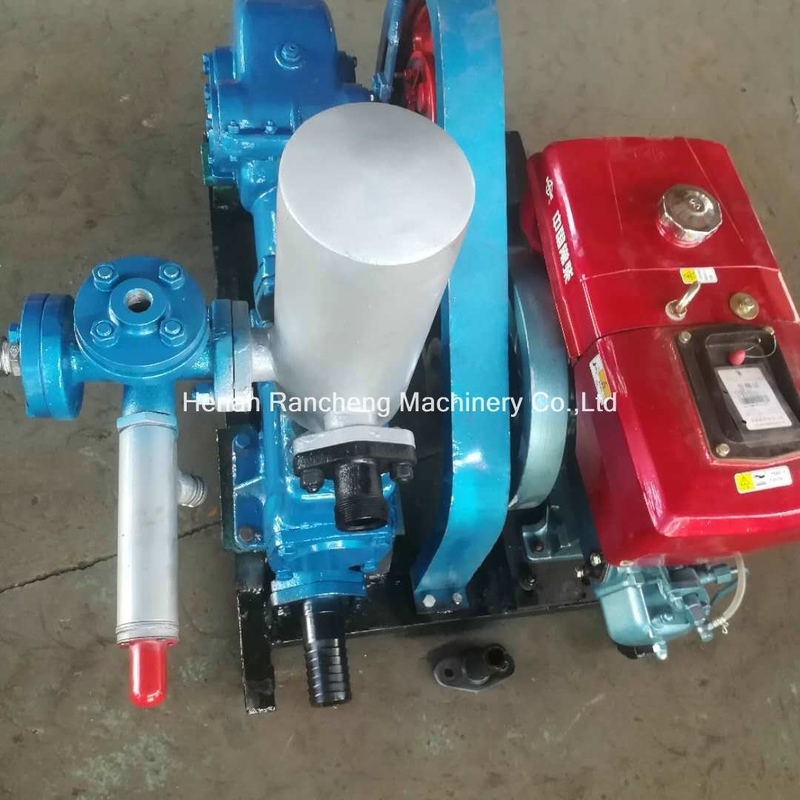

The BW160 mud pump is a single-cylinder piston pump equipped with a single-cylinder diesel engine, operating in first gear at a constant speed. With a flow rate of 160 liters per minute and a maximum pressure of 1.3 MPa, it is primarily used in various drilling projects.
| Parameter | Value |
|---|---|
| Model No. | BW160 |
| Cylinder diameter | 95mm |
| Piston Stroke | 90mm |
| Frequency of stroke | 147 times/min |
| Flow rate | 160 L/min |
| Pressure | 1.3 MPa |
| Power input | 5.5 kW |
| Diameter of suction pipe | 50mm |
| Diameter of discharge pipe | 40mm |
| Overall dimensions (L×W×H) | 850×600×550mm |
| Weight | 130kg |
The BW160 mud pump is a portable unit primarily designed to match with small-diameter geological exploration and engineering exploration drilling rigs with drilling depth of less than 300m.
