Adaptive Pressure Regulation Water Well Drilling Machine 350m Depth DTH Rig
Product Description
The RCF350C drill rig, with its powerful drilling capacity and flexible adaptability, is ideal for navigating complex geological conditions. Whether in soft soil or hard rock, this drill rig operates reliably, with a maximum drilling depth of 350 meters, meeting diverse needs such as agricultural irrigation, industrial exploration, and municipal water supply.
Key Features:
Intelligent Pressure Regulation: Dynamically optimizes impact force to ensure efficient rock breaking while minimizing energy loss.
Powerful Rotational Power: High torque output significantly increases drilling speed and shortens project cycle times.
Highly Modular: Quickly adjusts configuration to suit different working conditions, adapting to a variety of operating environments.
Extreme Durability: Its heavy-duty design ensures stable operation even in extreme conditions, reducing maintenance costs.
With its advanced impact optimization technology and precise pressure management, the RCF350C drill rig ensures efficient drilling while significantly improving energy efficiency, providing users with a powerful, durable, and professional drilling experience.
| Model | RCF350C |
| Bore diameter(Hammer) | 140-350mm |
| Bore depth | 350m |
| Air consumption | 17-35m³/min |
| Air pressure | 1.7-3.5Mpa |
| Pipe diameter | 89mm/102mm |
| Pipe length | 1m/2m/3m/6m |
| Lifting force | 22T |
| Lifting speed | 3m/min |
| feeding speed | 0.5-5m/min |
| Fast lifting speed | 30m/min |
| Fast feeding speed | 50m/min |
| Max torque of the rotary | 6200-8500Nm |
| Rotary speed | 55-115r/min |
| Hoist lifting capacity | 2T |
| Mud Pump flow | 450L/min (option) |
| High hydraulic leg | 1.5m |
| Feeding efficiency | 10-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension(L*W*H) | 6000×2000×2550mm |
| Weight | 8600Kg |
| Diesel engine | 91KW Yuchai engine |
| Drilling way | Air compressor drilling or mud pump drilling |
| Operating system | Full hydraulic operation |
2,Lifelong and free technical support.
3,Service overseas: if you need, we can dispatch an engineer to your door.
Q:Are you the manufacturer?
A: Yes, we are a factory with more than 10 years of manufacturing experience.
Q:What is the warranty of our machine?
A:Our main machine enjoys a 1-year warranty. And we provide videos for machine install and operation.
Q:How do you make our business a long-term and good relationship?
A:We keep good quality and competitive prices to ensure our customers' benefits.
Q:Do you have any certificates for your machine?
A: All of our products coming with the certificates of CE and ISO 9001:2000.

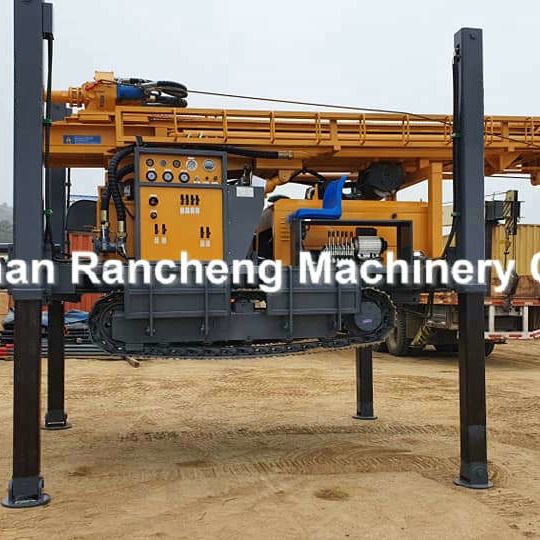

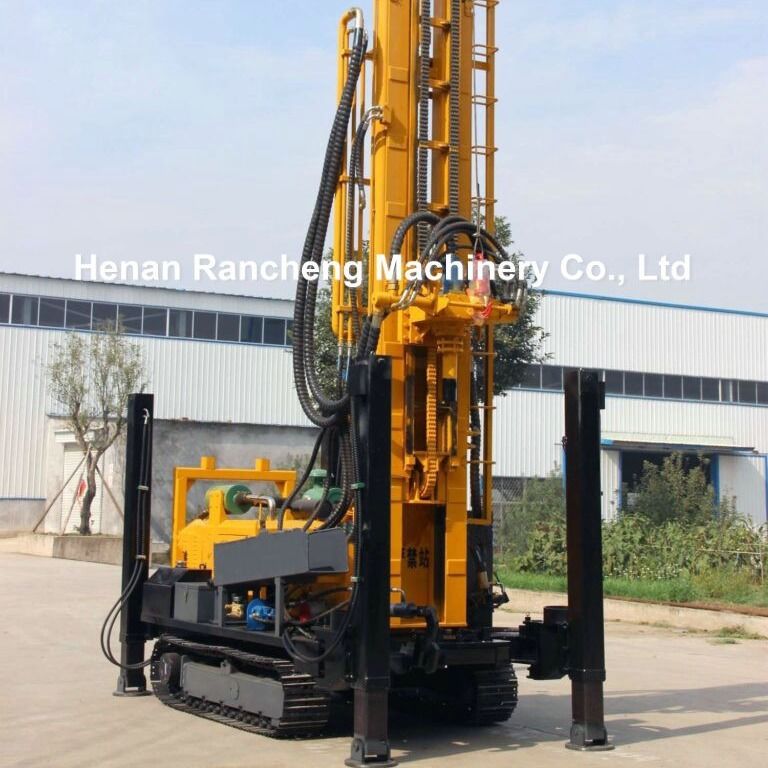

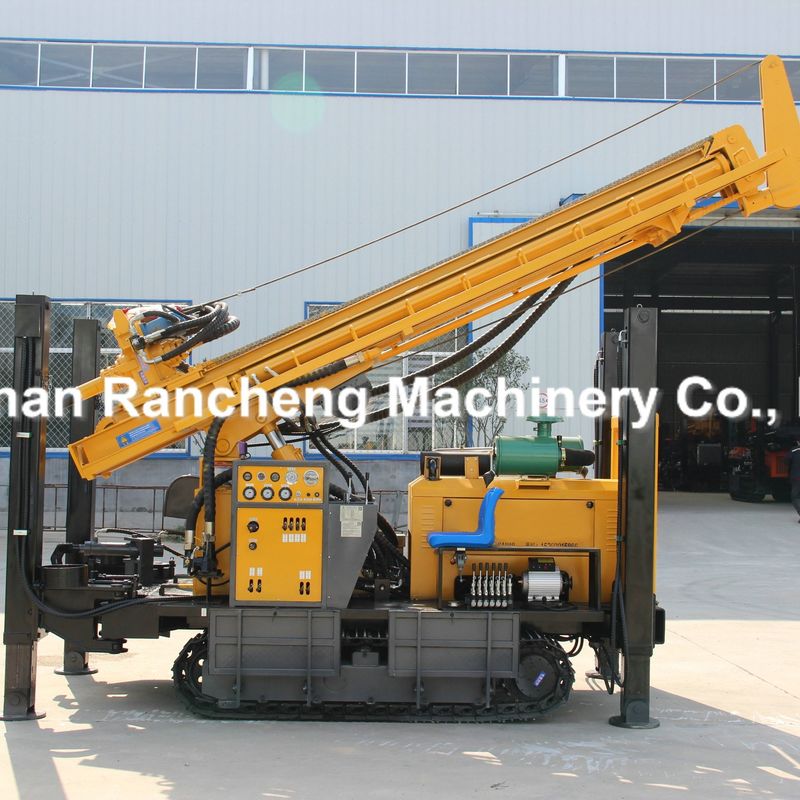

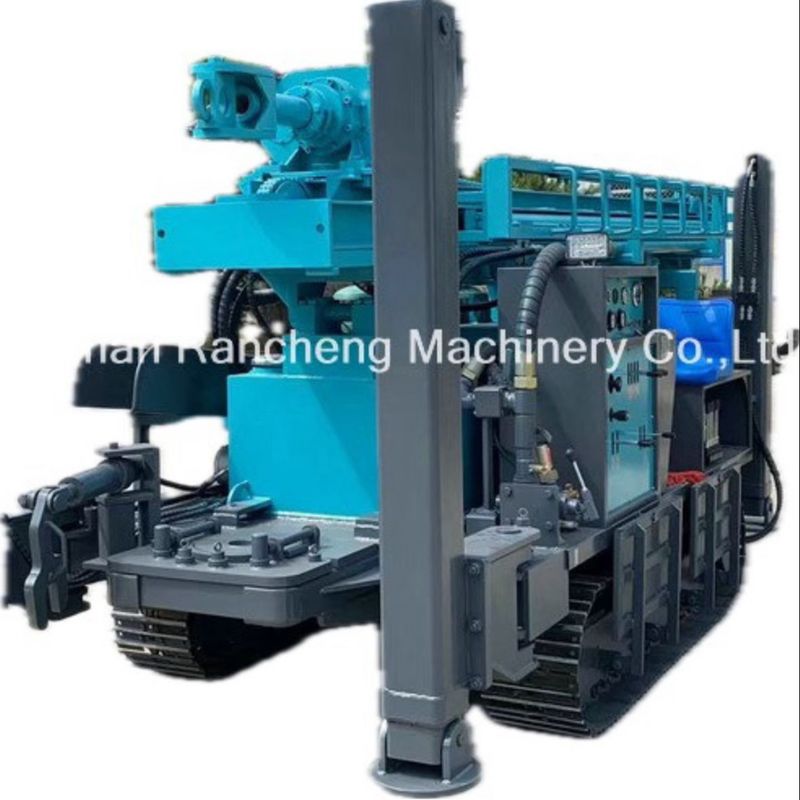

Machine picture display
