起源の場所:
中国
ブランド名:
RanCheng
証明:
CE, ISO 9001:2000
モデル番号:
KSCY-400/14.5K

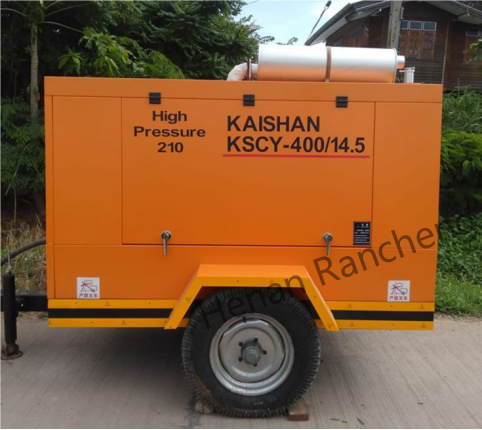

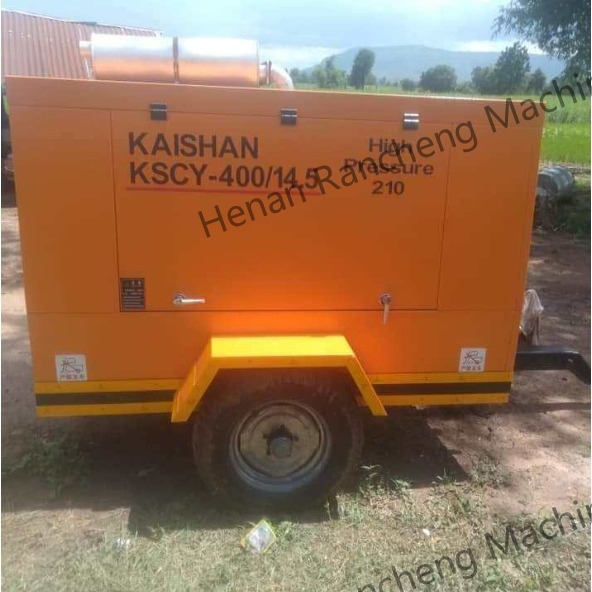

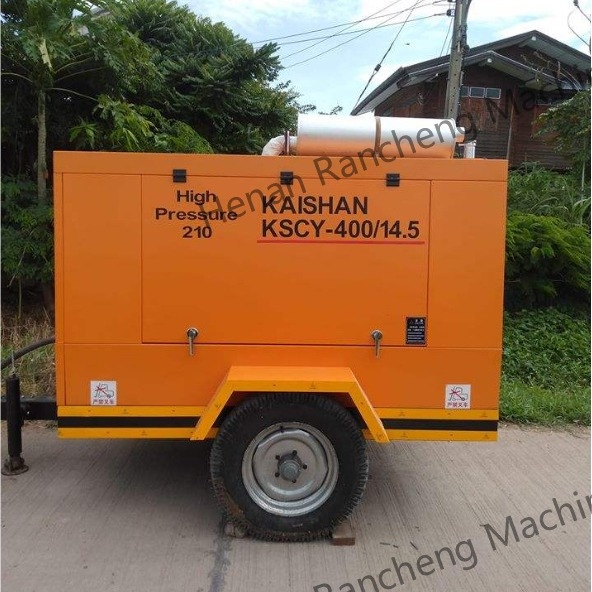

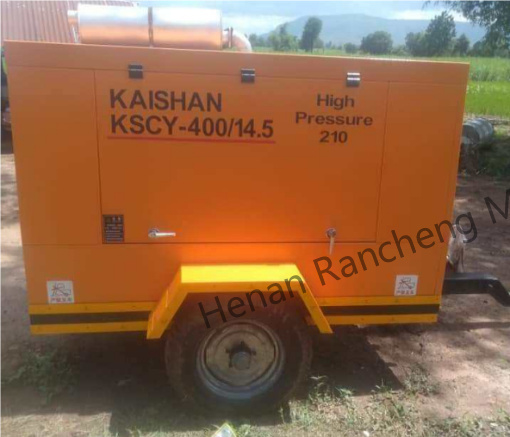

The KSCY-400/14.5K is a trailer-mounted diesel-driven screw air compressor engineered for heavy-duty industrial, construction, and mining applications. With a 400 CFM displacement and a working pressure of 14.5 bar (210 psi), it delivers a relentless high-flow air supply, supported by a 150-horsepower Cummins engine for good reliability in extreme conditions.
| Model | KSCY-360/13 | KSCY-400/14.5K | KSCY-550/13 | KSCY-580/17 | KSCY-680/14.5 | ||
| Air Compressor | |||||||
| Capacity |
m3/min (cfm) |
10(360) | 11(400) | 15(550) | 17(580) | 19(680) | |
| Discharge Pressure | Bar(Psi) | 13(190) | 14.5(210) | 13(190) | 17(250) | 14.5(210) | |
| Capacity oil system | L | 30 | 40 | ||||
| Compression Stages | 1 | ||||||
| Diesel Engine | |||||||
| Manuafacturer | Yuchai | Cummins | Cummins | Cummins | Cummins | ||
| Model | YC6B150Z-K20 | 150HP | 6BTA5.9-C180 | 6CTA8.3-C260 | 6CTA8.3-C260 | ||
| Rotating Speed Full load | r/min | 2100 | 2100 | 2500 | 2200 | 2200 | |
| Rotating Speed No load | r/min | 1400 | 1400 | 1400 | 1500 | 1500 | |
| Rated Power | HP(KW) | 110(150) | 110(150) | 180(132) | 260(194) | 260(194) | |
| Capactiy | L | 6.871 | 6.871 | 5.9 | 8.3 | 8.3 | |
| Capacity fuel tank | L | 130 | 130 | 195 | 300 | 300 | |
| Electric System Voltage | V | 24 | 24 | 24 | 24 | 24 | |
| The Whole Air Compressor | |||||||
| Sound level | ±3dB(A) | 80 | 82 | ||||
| Weight | kg | 2200 | 2400 | 3200 | 3200 | ||
| Length | mm | 3650 | 3000 | 3600 | 3600 | ||
| Width | mm | 1880 | 1520 | 1800 | 1800 | ||
| Height | mm | 2060 | 2200 | 2450 | 2450 | ||
| Outlet Valve | G11/2 ×1,G3/4 ×1 | G2×1,G3/4×1 | |||||
Power & Performance
• 400 CFM Airflow: Run multiple high-demand tools continuously (rock drills, industrial sandblasters).
• 14.5 Bar Pressure: Optimized for heavy tasks: laser-cutting thick metals, pipeline cleaning, large-scale painting.
• Cummins Engine: Fuel-efficient, high-altitude capable, built for rugged terrain durability.
Efficiency & Reliability
• 30-Year Lifespan: Precision screw element minimizes wear, cuts downtime.
• Smart Flow Control: Slide valve tech reduces energy use by 35% vs. traditional compressors.
• Multi-Phase Tolerance: Handles dusty/humid/liquid-laden air (ideal for mining, wastewater, chemical sectors).
Mobility & Operation
• Trailer-Mounted: Heavy-duty wheels + tow hitch for off-road site access.
• Automated Controls: Intuitive panel enables 24/7 operation without specialists.
• Low Noise: <85 dB(A) enclosure for noise-sensitive zones.
Rugged Design
• Weatherproof Housing: Withstands corrosion, extreme temps, dust.
• Foundation-Free: Dynamic balance operates on uneven ground.
