起源の場所:
中国
ブランド名:
RanCheng
証明:
CE, ISO 9001:2000
モデル番号:
RCF450C
RCF450C Crawler Water Well Drill Rig Machine 450m Deep Hole Drilling For Mining, Reliable & Efficient
Machine Introduction
RCF450C deep water well drilling rig is a product independently developed by our company. This new generation of down-the-hole hammer combined with greater pneumatic power plays an important role in increasing drilling speed. Made of high-quality materials and stylish and compact design, our drilling rigs are more efficient, have lower failure rates, are more economical and durable, and have a higher overall cost-effectiveness. Our water well drilling rigs have been actually recognized by the market and have received positive feedback from our customers.
Technical Parameters
| The weight(T) | 9.4 | Drill pipe diameter(mm) | Φ89 Φ102 |
| The hole diameter(mm) | 140-350 | Drill pipe length(m) | 1.5m 2.0m 3.0m 6.0m |
| Drilling depth(m) | 450 | Rig lifting force(T) | 25 |
| One-time advance length(m) | 6.6 | Rapid rise speed(m/min) | 20 |
| Walking speed(km/h) | 2.5 | Fast feeding speed(m/min) | 40 |
| Climbing angles(Max.) | 30 | Width of loading(m) | 2.8 |
| Equipped capacitor(kw) | 103 | Hoisting force of winch(T) | 2 |
| Using air pressure(MPA) | 1.7-3.5 | Swing torque(N.m) | 7000-9500 |
| Air consumption(m³/min) | 17-36 | Dimension(mm) | 5950×2100×2600 |
| Swing speed(rpm) | 50-135 | Equipped with hammer | Medium and high wind pressure series |
| The penetration efficiency(m/h) | 15-35 | High leg stroke(m) | 1.6 |
| The engine brand | Weichai engine ( National III ) | ||
Application
Our water well drilling rigs adopt the latest models and advanced hydraulic technology, with the characteristics of low energy consumption, high torque, and convenient well position steering. They are mainly used for drilling in resource exploration, hydrological wells, civil water wells, agricultural irrigation and other projects.
Our Service
In terms of pre - sales service, we are not just selling products, but becoming trusted advisors and powerful assistants to our customers to ensure they make informed investment decisions. We offer a number of services, including assisting customers in selecting equipment models that suit their needs, custom designing and manufacturing products according to customers' special requirements, and providing customers with comprehensive technician training to ensure they can make the most of our equipment.
In terms of in - sales service, we are committed to providing customers with all-round support. We promise to conduct pre - acceptance before shipment to ensure product quality meets customer expectations. In addition, we actively assist customers in formulating solutions to solve any problems they may encounter during use and ensure that their projects proceed smoothly.
In terms of after - sales service, we always provide customers with continuous support with a thoughtful attitude to minimize their worries. We provide comprehensive after - sales service, and professional engineers can repair machinery for customers at any time at home and abroad to ensure the stable operation of the equipment. We provide 24 - hour technical support via email to answer customer questions and provide assistance in a timely manner. In addition, we provide other necessary technical services to ensure that our customers' needs are fully met.

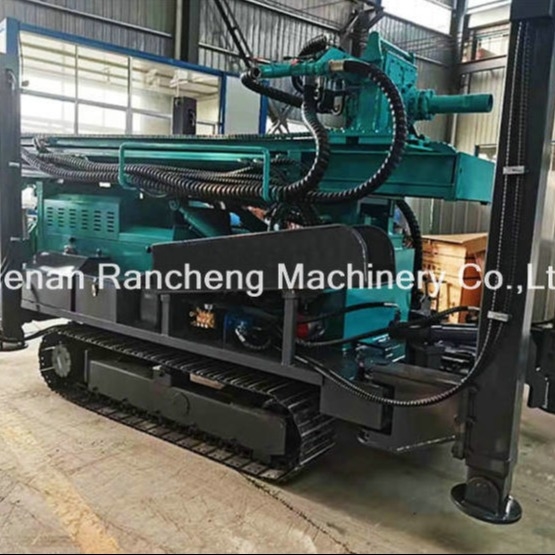

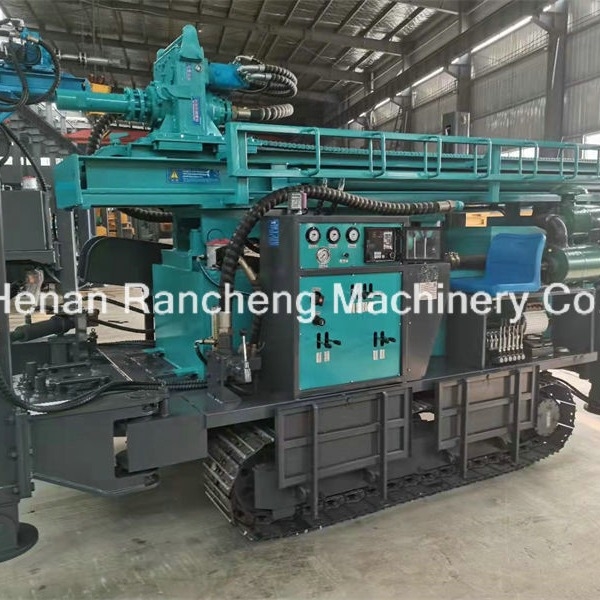

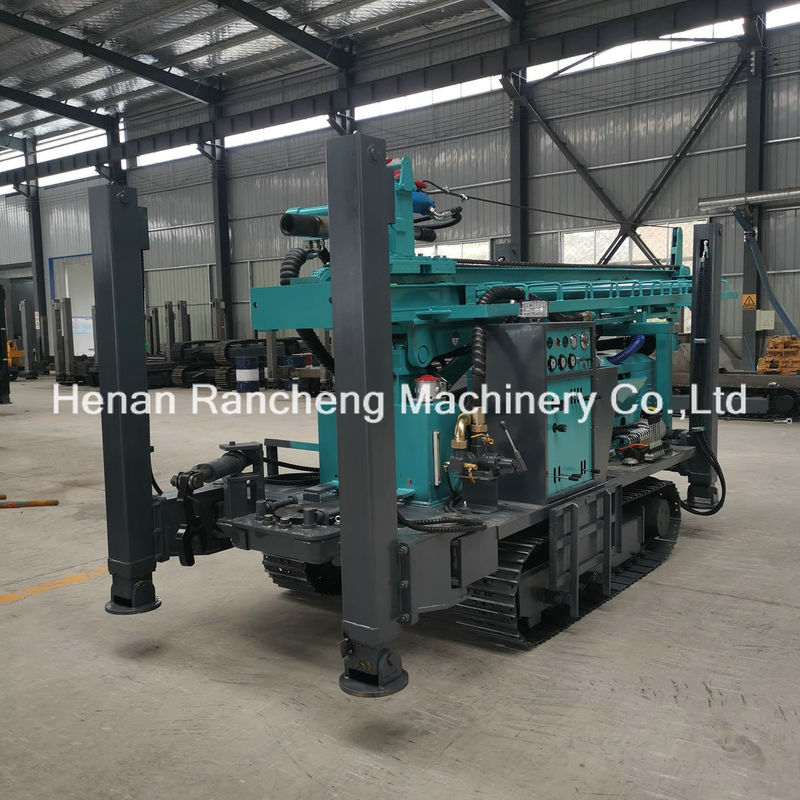

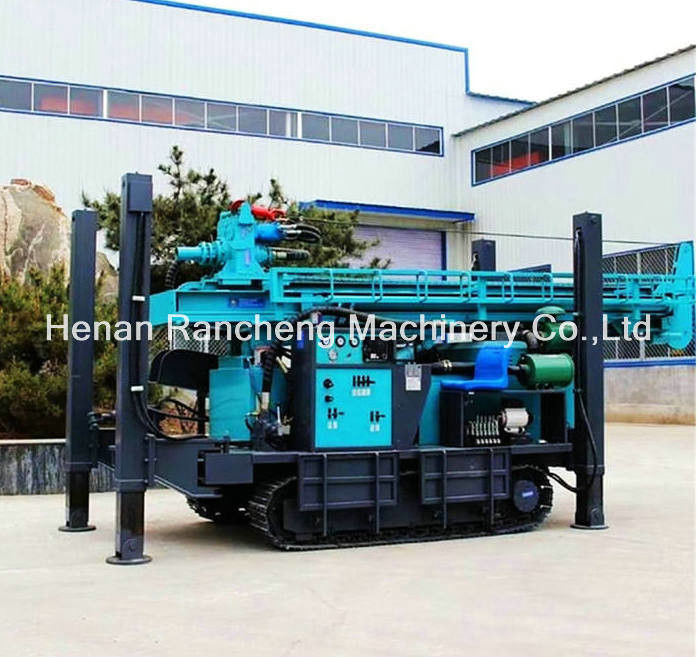

Machine Pictures
