起源の場所:
中国
ブランド名:
RanCheng
証明:
CE, ISO 9001:2000
モデル番号:
RCF500C
Drill Depth 500m Water Well Drilling Rig Drilling Machine For Water Well Well Drilling Rig Engineering Construction
Product Description
RCF500C deepwater well drilling rig is a product independently developed by our company. This new generation of down-the-hole hammer combined with greater pneumatic power plays an important role in increasing drilling speed. Adopting the latest model and advanced hydraulic technology, it has the characteristics of low energy consumption, high torque, convenient well position steering, etc. Made of high-quality materials, stylish and compact design, our drilling rigs are more efficient, have lower failure rate, are more economical and durable, and have a higher comprehensive cost performance. Our water well drilling rigs have been actually recognized by the market and received positive feedback from our customers.
Mainly used for drilling in resource exploration, hydrological wells, civil water wells, agricultural irrigation and other projects.
Technical Parameters
| Model | RCF500C | ||
| Weight(kg) | 11500 | Drill pipe diameter(mm) | Φ102 Φ108 Φ114 |
| The hole diameter(mm) | 140-350 | Drill pipe length(m) | 1.5m 2.0m 3.0m 6.0m |
| Drilling depth(m) | 500 | Rig lifting force(T) | 26 |
| One-time advance length(m) | 6.6 | Rapid rise speed(m/min) | 20 |
| Walking speed(km/h) | 2.5 | Fast feeding speed(m/min) | 40 |
| Climbing angles(Max.) | 30° | Width of loading(m) | 2.85 |
| Equipped capacitor(kw) | 118 | Hoisting force of winch(T) | 2 |
| Using air pressure(MPA) | 1.7-3.5 | Swing torque(N.m) | 7500-10000 |
| Air consumption(m³/min) | 17-42 | Dimension(mm) | 6200×2200×2650 |
| Swing speed(rpm) | 40-130 | Equipped with hammer | Medium and high wind pressure series |
| The penetration efficiency(m/h) | 15-35 | High leg stroke(m) | 1.7 |
| The engine brand | Yuchai engine | ||
Advantage and features
Easy and flexible full hydraulic control
The rig's speed, torque, thrust axial pressure, reverse axial pressure, thrust speed, and lifting speed can be adjusted at any time to meet the requirements of different drilling tool working conditions and different construction processes
Top-drive slewing propulsion lift
It is easy to connect and disconnect the drill pipe, shorten the auxiliary time, and also facilitate drilling with the pipe.
Multifunctional drilling
Various drilling processes can be used on this rig, such as: down-the-hole drilling, through-air reverse circulation drilling, gas lift reverse circulation drilling, cutting drilling, roller drilling, tube drilling, and Core drilling under development and more. The drilling rig can be equipped with mud pumps, foam pumps and generators according to user needs. The rig is also equipped with various hoists as standard.
High efficiency
Due to the full hydraulic and top-drive slewing propulsion lifting, it is suitable for various drilling processes and various drilling tools, with convenient and flexible control, fast drilling speed and short auxiliary time, so the operation efficiency is high.
Our service
1. Before the sale, we will serve as your advisor and assistant to ensure you make informed investment decisions:
① Assist you in selecting the equipment model that best suits your needs;
② Design and manufacture products according to your special requirements;
③ Provide you with training technical personnel services.
2. During the sales process, we will provide the following services:
① Conduct pre-acceptance before shipment;
② Help you develop solutions.
3. After the sale, we will provide considerate services to minimize your worries:
① Provide comprehensive after-sales service, our professional engineers can repair machinery for you at home and abroad;
② 24 - hour technical support via email;
③ Provide other necessary technical services.

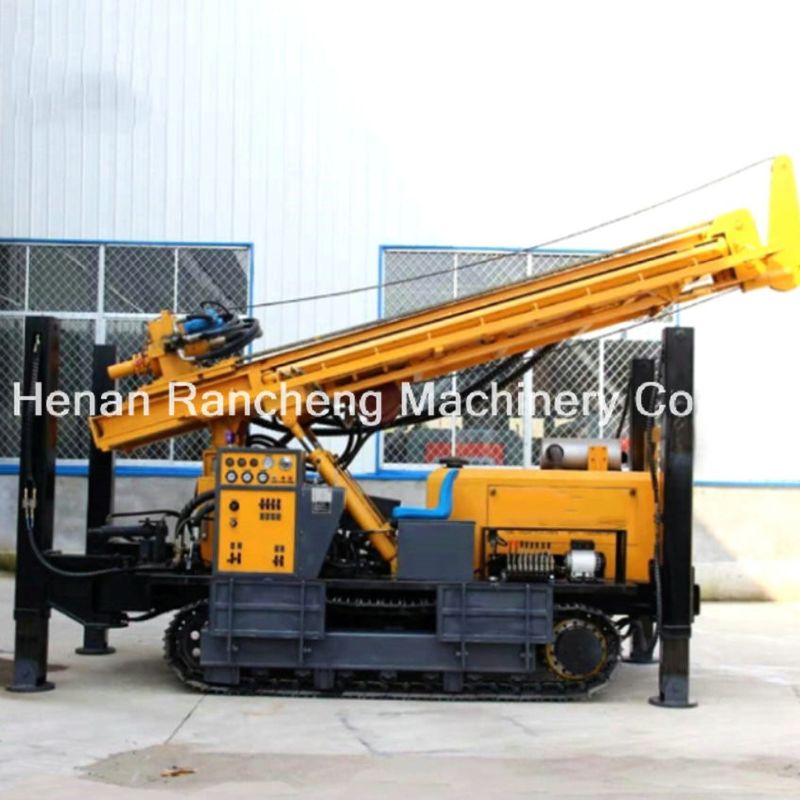

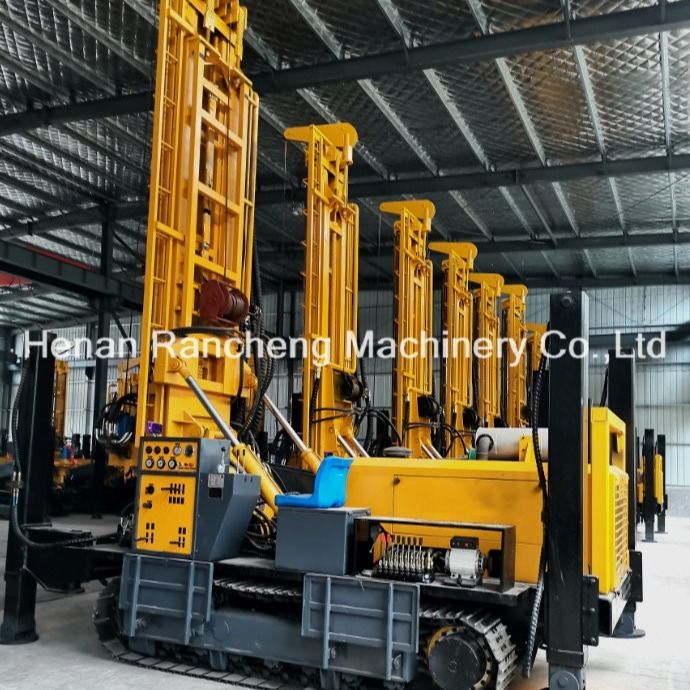

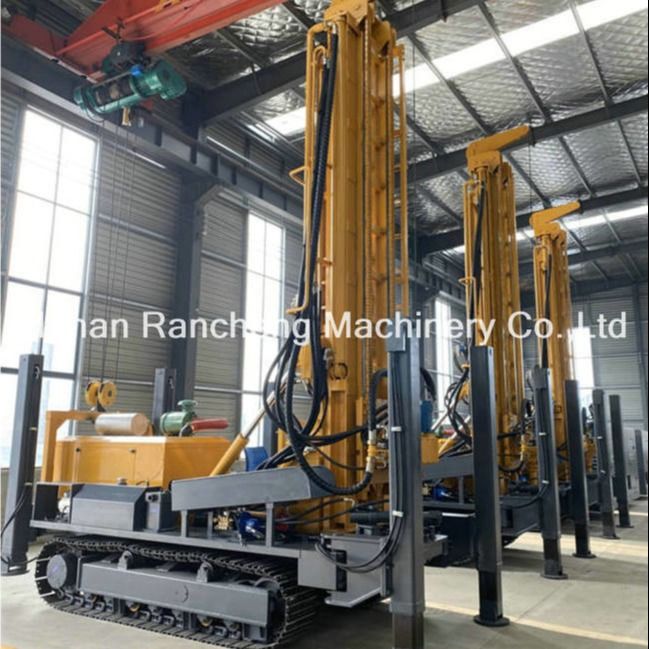

Machine Picture Display
